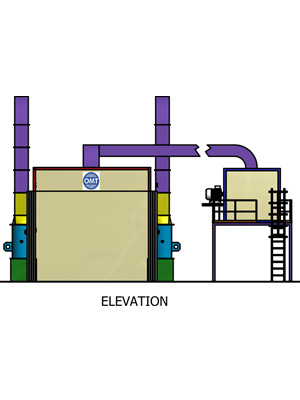

PBWH Dimensions
| Internal Size (L x W x H) in mm |
5880 x 4880 x 4940 |
| External Size (L x W x H) in mm |
6000 x 7000 x 6000 |
Booth Construction
| Enclosure |
MS structures and 1.2 mm thick GI panels |
| Civil Pit |
Not required |
| Door |
Multi Fold entry/exit door (4500 W x 5000 H in mm) - 1 unit |
| Emergency door with safety glass window |
(800 W x 2000 H in mm)-1 unit |
| Platform for Air supply unit |
Structural or civil platform and connecting duct from Air supply unit to Paint Booth to be considered in customer's scope. |
Lighting
| Illumination Intensity |
1000 Lux. |
| Illumination |
10 units of fluorescent lights each 4x36 W of 1.2 m long, total 1440 W
 |
Filtration
| Air Inlet Filters |
EU3 Pre filter and EU5 Matt filter
Filtration through EU3 filter to arrest dust particles up to 20 micron size and further filtration will be done using EU 5 down to 5 micron.

|
| Paint arresting Filters |
1) Pleated Cardboard Filter is made of layers of recycled Kraft paper, perforated, pleated and glued,imported from European Union.
2) Paint holding capacity up to 18 kg/m2*
3) Filtration efficiency up to 98% depending on type of paint sprayed
4) Easily replaceable pull out & fit in type
 |
Ventilation System
| Fresh air supply cum exhaust fan capacity |
55500 CMH - 01 unit to maintain for dust free painting and to maintain positive pressure in the paint booth.
|
| Supply Fan Motor |
Siemens/ABB make as per IEC standards
1x 15 KW |
| Exhaust air fan capacity |
27000 CMH - 02 units
Operating Medium - Air with paint fumes |
| Exhaust Fan Motor |
Siemens/ABB make as per IEC standards
2 x 5.5 KW |
| Air flow velocity |
Minimum average air velocity - 0.5 m/sec when measured 1 m away from the filter. |
| Exhaust Ducting |
Exhaust duct of 1 m length from our equipment. |
Control Panel
| Control Panel |
Electrical control panel as per IP 54 with necessary controls and safety and logic interlocks
|
Total connected electrical Power |
27.5 KW |
Utility Details
| Electric System |
415 V /50 Hz/3 Phase/4 Wires If different please contact us. |
| Standards Followed |
Specifications confirming to OSHA, NFPA, EPA, Dubai EHS standards |
Warranty
| Warranty |
12 months from the date of commissioning (if the installation is done by us) or 15 months from the date of supply, whichever is earlier
|
*Conditions apply
PBWH Dimensions
| Internal Size (L x W x H) in mm |
7880 x 4880 x 4940 |
| External Size (L x W x H) in mm |
8000 x 7000 x 6000 |
Booth Construction
| Enclosure |
MS structures and 1.2 mm thick GI panels |
| Civil Pit |
Not required |
| Door |
Multi Fold entry/exit door (4500 W x 5000 H in mm) - 1 unit |
| Emergency door with safety glass window |
(800 W x 2000 H in mm)-1 unit |
| Platform for Air supply unit |
Structural or civil platform and connecting duct from Air supply unit to Paint Booth to be considered in customer's scope. |
Lighting
| Illumination Intensity |
1000 Lux. |
| Illumination |
12 units of fluorescent lights each 4x36 W of 1.2 m long, total 1730 W
|
Filtration
| Air Inlet Filters |
EU3 Prefilter and EU5 Matt filter
Filtration through EU3 filter to arrest dust particles up to 20 micron size and further filtration will be done using EU 5 down to 5 micron.
|
| Paint arresting Filters |
1) Pleated Cardboard Filter is made of layers of recycled Kraft paper, perforated, pleated and glued,imported from European Union.
2) Paint holding capacity up to 18 kg/m2*
3) Filtration efficiency up to 98% depending on type of paint sprayed
4) Easily replaceable pull out & fit in type
|
Ventilation System
| Fresh air supply cum exhaust fan capacity |
74000 CMH - 01 unit to maintain for dust free painting and to maintain positive pressure in the paint booth.
|
| Supply Fan Motor |
Siemens/ABB make as per IEC standards
1x 18.5 KW |
| Exhaust air fan capacity |
36000 CMH - 02 units
Operating Medium - Air with paint fumes |
| Exhaust Fan Motor |
Siemens/ABB make as per IEC standards
2 x 7.5 KW |
| Air flow velocity |
Minimum average air velocity - 0.5 m/sec when measured 1 m away from the filter. |
| Exhaust Ducting |
Exhaust duct of 1 m length from our equipment. |
Control Panel
| Control Panel |
Electrical control panel as per IP 54 with necessary controls and safety and logic interlocks
|
Total connected electrical Power |
35.5 KW |
Utility Details
| Electric System |
415 V /50 Hz/3 Phase/4 Wires If different please contact us. |
| Standards Followed |
Specifications confirming to OSHA, NFPA, EPA, Dubai EHS standards |
Warranty
| Warranty |
12 months from the date of commissioning (if the installation is done by us) or 15 months from the date of supply, whichever is earlier
|
*Conditions apply
PBWH Dimensions
| Internal Size (L x W x H) in mm |
9880 x 5880 x 4940 |
| External Size (L x W x H) in mm |
10000 x 8000 x 6000 |
Booth Construction
| Enclosure |
MS structures and 1.2 mm thick GI panels |
| Civil Pit |
Not required |
| Door |
Multi Fold entry/exit door (5500 W x 5000 H in mm) - 1 unit |
| Emergency door with safety glass window |
(800 W x 2000 H in mm)-1 unit |
| Platform for Air supply unit |
Structural or civil platform and connecting duct from Air supply unit to Paint Booth to be considered in customer's scope. |
Lighting
| Illumination Intensity |
1000 Lux. |
| Illumination |
18 units of fluorescent lights each 4x36 W of 1.2 m long, total 2600 W
|
Filtration
| Air Inlet Filters |
EU3 Prefilter and EU5 Matt filter
Filtration through EU3 filter to arrest dust particles up to 20 micron size and further filtration will be done using EU 5 down to 5 micron.
|
| Paint arresting Filters |
1) Pleated Cardboard Filter is made of layers of recycled Kraft paper, perforated, pleated and glued,imported from European Union.
2) Paint holding capacity up to 18 kg/m2*
3) Filtration efficiency up to 98% depending on type of paint sprayed
4) Easily replaceable pull out & fit in type
|
Ventilation System
| Fresh air supply cum exhaust fan capacity |
110000 CMH - 01 unit to maintain for dust free painting and to maintain positive pressure in the paint booth.
|
| Supply Fan Motor |
Siemens/ABB make as per IEC standards
30 KW |
| Exhaust air fan capacity |
27000 CMH - 04 units Operating Medium - Air with paint fumes |
| Exhaust Fan Motor |
Siemens/ABB make as per IEC standards
4 x 5.5 KW |
| Air flow velocity |
Minimum average air velocity - 0.5 m/sec when measured vertically above the grating floor area. |
| Exhaust Ducting |
Exhaust duct of 1 m length from our equipment. |
Control Panel
| Control Panel |
Electrical control panel as per IP 54 with necessary controls and safety and logic interlocks
|
Total connected electrical Power |
54.6 KW |
Utility Details
| Electric System |
415 V /50 Hz/3 Phase/4 Wires If different please contact us. |
| Standards Followed |
Specifications confirming to OSHA, NFPA, EPA, Dubai EHS standards |
Warranty
| Warranty |
12 months from the date of commissioning (if the installation is done by us) or 15 months from the date of supply, whichever is earlier
|
*Conditions apply
PBWH Dimensions
| Internal Size (L x W x H) in mm |
11880 x 4880 x 4940 |
| External Size (L x W x H) in mm |
12000 x 7000 x 6000 |
Booth Construction
| Enclosure |
MS structures and 1.2 mm thick GI panels |
| Civil Pit |
Not required |
| Door |
Multi Fold entry/exit door (4500 W x 5000 H in mm) - 1 unit |
| Emergency door with safety glass window |
(800 W x 2000 H in mm)-1 unit |
| Platform for Air supply unit |
Structural or civil platform and connecting duct from Air supply unit to Paint Booth to be considered in customer's scope. |
Lighting
| Illumination Intensity |
1000 Lux. |
| Illumination |
18 units of fluorescent lights each 4x36 W of 1.2 m long, total 2600 W
|
Filtration
| Air Inlet Filters |
EU3 Prefilter and EU5 Matt filter
Filtration through EU3 filter to arrest dust particles up to 20 micron size and further filtration will be done using EU 5 down to 5 micron.
|
| Paint arresting Filters |
1) Pleated Cardboard Filter is made of layers of recycled Kraft paper, perforated, pleated and glued,imported from European Union.
2) Paint holding capacity up to 18 kg/m2*
3) Filtration efficiency up to 98% depending on type of paint sprayed
4) Easily replaceable pull out & fit in type
|
Ventilation System
| Fresh air supply cum exhaust fan capacity |
110000 CMH - 01 unit to maintain for dust free painting and to maintain positive pressure in the paint booth.
|
| Supply Fan Motor |
Siemens/ABB make as per IEC standards
1 x 30 KW |
| Exhaust air fan capacity |
27000 CMH - 04 units Operating Medium - Air with paint fumes |
| Exhaust Fan Motor |
Siemens/ABB make as per IEC standards
4 x 5.5 KW |
| Air flow velocity |
Minimum average air velocity - 0.5 m/sec when measured 1 m away from the filter. |
| Exhaust Ducting |
Exhaust duct of 1 m length from our equipment. |
Control Panel
| Control Panel |
Electrical control panel as per IP 54 with necessary controls and safety and logic interlocks
|
Total connected electrical Power |
54.6 KW |
Utility Details
| Electric System |
415 V /50 Hz/3 Phase/4 Wires If different please contact us. |
| Standards Followed |
Specifications confirming to OSHA, NFPA, EPA, Dubai EHS standards |
Warranty
| Warranty |
12 months from the date of commissioning (if the installation is done by us) or 15 months from the date of supply, whichever is earlier
|
*Conditions apply
PBWH Dimensions
| Internal Size (L x W x H) in mm |
14880 x 4880 x 4940 |
| External Size (L x W x H) in mm |
15000 x 7000 x 6000 |
Booth Construction
| Enclosure |
MS structures and 1.2 mm thick GI panels |
| Civil Pit |
Not required |
| Door |
Multi Fold entry/exit door (4500 W x 5000 H in mm) - 1 unit |
| Emergency door with safety glass window |
(800 W x 2000 H in mm)-2 units |
| Platform for Air supply unit |
Structural or civil platform and connecting duct from Air supply unit to Paint Booth to be considered in customer's scope. |
Lighting
| Illumination Intensity |
1000 Lux. |
| Illumination |
24 units of fluorescent lights each 4x36 W of 1.2 m long, total 3500 W
|
Filtration
| Air Inlet Filters |
EU3 Prefilter and EU5 Matt filter
Filtration through EU3 filter to arrest dust particles up to 20 micron size and further filtration will be done using EU 5 down to 5 micron.
|
| Paint arresting Filters |
1) Pleated Cardboard Filter is made of layers of recycled Kraft paper, perforated, pleated and glued,imported from European Union.
2) Paint holding capacity up to 18 kg/m2*
3) Filtration efficiency up to 98% depending on type of paint sprayed
4) Easily replaceable pull out & fit in type
|
Ventilation System
| Fresh air supply cum exhaust fan capacity |
70000 CMH - 02 units to maintain for dust free painting and to maintain positive pressure in the paint booth.
|
| Supply Fan Motor |
Siemens/ABB make as per IEC standards
2 x 15 KW |
| Exhaust air fan capacity |
34000 CMH - 04 units Operating Medium - Air with paint fumes
|
| Exhaust Fan Motor |
Siemens/ABB make as per IEC standards
4 x 7.5 KW |
| Air flow velocity |
Minimum average air velocity - 0.5 m/sec when measured 1 m away from the filter. |
| Exhaust Ducting |
Exhaust duct of 1 m length from our equipment. |
Control Panel
| Control Panel |
Electrical control panel as per IP 54 with necessary controls and safety and logic interlocks
|
Total connected electrical Power |
64.5 KW |
Utility Details
| Electric System |
415 V /50 Hz/3 Phase/4 Wires If different please contact us. |
| Standards Followed |
Specifications confirming to OSHA, NFPA, EPA, Dubai EHS standards |
Warranty
| Warranty |
12 months from the date of commissioning (if the installation is done by us) or 15 months from the date of supply, whichever is earlier
|
*Conditions apply
PBWH Dimensions
| Internal Size (L x W x H) in mm |
16880 x 4880 x 4940 |
| External Size (L x W x H) in mm |
17000 x 7000 x 6000 |
Booth Construction
| Enclosure |
MS structures and 1.2 mm thick GI panels |
| Civil Pit |
Not required |
| Door |
Multi Fold entry/exit door (4500 W x 5000 H in mm) - 1 unit |
| Emergency door with safety glass window |
(800 W x 2000 H in mm)-2 units |
| Platform for Air supply unit |
Structural or civil platform and connecting duct from Air supply unit to Paint Booth to be considered in customer's scope. |
Lighting
| Illumination Intensity |
1000 Lux. |
| Illumination |
26 units of fluorescent lights each 4x36 W of 1.2 m long, total 3750 W
|
Filtration
| Air Inlet Filters |
EU3 Prefilter and EU5 Matt filter
Filtration through EU3 filter to arrest dust particles up to 20 micron size and further filtration will be done using EU 5 down to 5 micron.
|
| Paint arresting Filters |
1) Pleated Cardboard Filter is made of layers of recycled Kraft paper, perforated, pleated and glued,imported from European Union.
2) Paint holding capacity up to
18 kg/m2*
3) Filtration efficiency up to 98% depending on type of paint sprayed
4) Easily replaceable pull out & fit in type
|
Ventilation System
| Fresh air supply cum exhaust fan capacity |
79000 CMH - 02 units to maintain for dust free painting and to maintain positive pressure in the paint booth.
|
| Supply Fan Motor |
Siemens/ABB make as per IEC standards
2 x 18.5 KW |
| Exhaust air fan capacity |
38500 CMH - 04 units Operating Medium - Air with paint fumes |
| Exhaust Fan Motor |
Siemens/ABB make as per IEC standards
4 x 7.5 KW |
| Air flow velocity |
Minimum average air velocity - 0.5 m/sec when measured 1 m away from the filter. |
| Exhaust Ducting |
Exhaust duct of 1 m length from our equipment. |
Control Panel
| Control Panel |
Electrical control panel as per IP 54 with necessary controls and safety and logic interlocks
|
Total connected electrical Power |
72 KW |
Utility Details
| Electric System |
415 V /50 Hz/3 Phase/4 Wires If different please contact us. |
| Standards Followed |
Specifications confirming to OSHA, NFPA, EPA, Dubai EHS standards |
Warranty
| Warranty |
12 months from the date of commissioning (if the installation is done by us) or 15 months from the date of supply, whichever is earlier
|
*Conditions apply
PBWH Dimensions
| Internal Size (L x W x H) in mm |
20880 x 5880 x 4940 |
| External Size (L x W x H) in mm |
21000 x 8000 x 6000 |
Booth Construction
| Enclosure |
MS structures and 1.2 mm thick GI panels |
| Civil Pit |
Not required |
| Door |
Multi Fold entry/exit door (5500 W x 5000 H in mm) - 1 unit |
| Emergency door with safety glass window |
(800 W x 2000 H in mm) - 2 units |
| Platform for Air supply unit |
Structural or civil platform and connecting duct from Air supply unit to Paint Booth to be considered in customer's scope. |
Lighting
| Illumination Intensity |
1000 Lux. |
| Illumination |
38 units of fluorescent lights each 4x36 W of 1.2 m long, total 5480 W
|
Filtration
| Air Inlet Filters |
EU3 Prefilter and EU5 Matt filter
Filtration through EU3 filter to arrest dust particles up to 20 micron size and further filtration will be done using EU 5 down to 5 micron.
|
| Paint arresting Filters |
1) Pleated Cardboard Filter is made of layers of recycled Kraft paper, perforated, pleated and glued,imported from European Union.
2) Paint holding capacity up to
18 kg/m2*
3) Filtration efficiency up to 98% depending on type of paint sprayed
4) Easily replaceable pull out & fit in type
|
Ventilation System
| Fresh air supply cum exhaust fan capacity |
117000 CMH - 02 units to maintain for dust free painting and to maintain positive pressure in the paint booth.
|
| Supply Fan Motor |
Siemens/ABB make as per IEC standards
1 x 30 KW |
| Exhaust air fan capacity |
38000 CMH - 06 units Operating Medium - Air with paint fumes
|
| Exhaust Fan Motor |
Siemens/ABB make as per IEC standards
6 x 7.5 KW |
| Air flow velocity |
Minimum average air velocity - 0.5 m/sec when measured 1 m away from the filter. |
| Exhaust Ducting |
Exhaust duct of 1 m length from our equipment. |
Control Panel
| Control Panel |
Electrical control panel as per IP 54 with necessary controls and safety and logic interlocks
|
Total connected electrical Power |
80.5 KW |
Utility Details
| Electric System |
415 V /50 Hz/3 Phase/4 Wires If different please contact us. |
| Standards Followed |
Specifications confirming to OSHA, NFPA, EPA, Dubai EHS standards |
Warranty
| Warranty |
12 months from the date of commissioning (if the installation is done by us) or 15 months from the date of supply, whichever is earlier
|
*Conditions apply

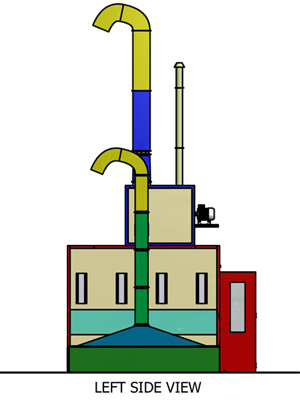

PBWH Dimensions
| Internal Size (L x W x H) in mm |
5880 x 4880 x 4940 |
| External Size (L x W x H) in mm |
6000 x 7000 x 8000 |
Booth Construction
| Enclosure |
60 mm thick pre coated PUF panels.
 |
| Civil Pit |
Not required |
| Door |
Multi Fold entry/exit door (4500 W x 5000 H in mm) - 1 unit |
| Emergency door with safety glass window |
(800 W x 2000 H in mm)-1 unit |
Lighting
| Illumination Intensity |
1000 Lux. |
| Illumination |
10 units of fluorescent lights each 4x36 W of 1.2 m long, total 1440 W
|
Filtration
| Air Inlet Filters |
EU3 Pre filter and EU5 Matt filter
Filtration through EU3 filter to arrest dust particles up to 20 micron size and further filtration will be done using EU 5 down to 5 micron.
|
| Paint arresting Filters |
1) Pleated Cardboard Filter is made of layers of recycled Kraft paper, perforated, pleated and glued,imported from European Union.
2) Paint holding capacity up to 18 kg/m2*
3) Filtration efficiency up to 98% depending on type of paint sprayed
4) Easily replaceable pull out & fit in type
|
Ventilation System
| Fresh air supply cum exhaust fan capacity |
55000 CMH - 01 unit to maintain for dust free painting and to maintain positive pressure in the paint booth.
In Paint booth mode will act as supply and exhaust fan.
In oven mode will act as circulation fan.
|
| Supply cum exhaust Fan Motor |
Siemens/ABB make as per IEC standards
1x 15 KW |
| Air flow velocity |
Minimum average air velocity - 0.5 m/sec when measured 1 m away from the filter. |
| Exhaust Ducting |
Exhaust duct of 1 m length from our equipment. |
Heating System
| Transfer of energy |
Convection |
| Heating media |
High Speed Diesel/Liquefied Petroleum Gas |
| Ambient temperature considered |
20 deg C
If different please contact us.
|
| Maximum air temperature |
80 deg C |
| Burner Capacity |
High Speed Diesel/Liquefied Petroleum Gas fired Burner of capacity 100,000 Kcal/Hr
 |
| Heat Exchanger |
Indirect heating system consisting of Heat Exchanger made out of SS.
Heat Exchanger capacity : 100,000 Kcal/Hr
Type : Floating Head Heat Exchanger capable of expanding or contracting in all directions.
 |
| Air recirculation |
90% of air recirculation |
| Air recirculation blower |
55000 CMH - 01 unit (Same as air supply blower) Temperature - Hot air temperature |
| Temperature control |
By Temperature Indicating Controller. |
| Air flow control |
Pneumatic dampers to change between paint booth & oven mode. |
Control Panel
| Control Panel |
Electrical control panel as per IP 54 with necessary controls and safety and logic interlocks
Can change between Paint booth mode & Oven mode
|
Total connected electrical Power |
18 KW |
Utility Details
| Electric System |
415 V /50 Hz/3 Phase/4 Wires
If different please contact us.
|
| Liquefied Petroleum Gas Train Output Pressure |
PBWH main line pressure 1000 mbar with regulator valve (output pressure 0-350 mbar) at a height of 1000 mm from floor level.
|
| Standards Followed |
Specifications confirming to OSHA, NFPA, EPA, Dubai EHS standards
|
Warranty
| Warranty |
12 months from the date of commissioning (if the installation is done by us) or 15 days from the date of supply, whichever is earlier.
|
*Conditions apply
PBWH Dimensions
| Internal Size (L x W x H) in mm |
7880 x 4880 x 4940 |
| External Size (L x W x H) in mm |
8000 x 7000 x 8000 |
Booth Construction
| Enclosure |
60 mm thick pre coated PUF panels.
|
| Civil Pit |
Not required |
| Door |
Multi Fold entry/exit door (4500 W x 5000 H in mm) - 1 unit |
| Emergency door with safety glass window |
(800 W x 2000 H in mm)-1 unit |
Lighting
| Illumination Intensity |
1000 Lux. |
| Illumination |
12 units of fluorescent lights each 4x36 W of 1.2 m long, total 1730 W
|
Filtration
| Air Inlet Filters |
EU3 Pre filter and EU5 Matt filter
Filtration through EU3 filter to arrest dust particles up to 20 micron size and further filtration will be done using EU 5 down to 5 micron.
|
| Paint arresting Filters |
1) Pleated Cardboard Filter is made of layers of recycled Kraft paper, perforated, pleated and glued,imported from European Union.
2) Paint holding capacity up to to 18 kg/m2*
3) Filtration efficiency up to 98% depending on type of paint sprayed
4) Easily replaceable pull out & fit in type
|
Ventilation System
| Fresh air supply cum exhaust fan capacity |
37000 CMH - 02 units to maintain for dust free painting and to maintain positive pressure in the paint booth.
In Paint booth mode will act as supply and exhaust fan.
In oven mode will act as circulation fan.
|
| Supply cum Exhaust Fan Motor |
Siemens/ABB make as per IEC standards
2x 11 KW |
| Air flow velocity |
Minimum average air velocity - 0.5 m/sec when measured 1 m away from the filter. |
| Exhaust Ducting |
Exhaust duct of 1 m length from our equipment. |
Heating System
| Transfer of energy |
Convection |
| Heating media |
High Speed Diesel/Liquefied Petroleum Gas |
| Ambient temperature considered |
20 deg C
If different please contact us.
|
| Maximum air temperature |
80 deg C |
| Burner Capacity |
High Speed Diesel/Liquefied Petroleum Gas fired Burner of capacity 200,000 Kcal/Hr
|
| Heat Exchanger |
Indirect heating system consisting of Heat Exchanger made out of SS.
Heat Exchanger capacity : 200,000 Kcal/Hr
Type : Floating Head Heat Exchanger capable of expanding or contracting in all directions.
|
| Air recirculation |
90% of air recirculation |
| Air recirculation blower |
37000 CMH - 02 units (Same as air supply blower)
Temperature - Hot air temperature
|
| Temperature control |
By Temperature Indicating Controller. |
| Air flow control |
Pneumatic dampers to change between paint booth & oven mode. |
Control Panel
| Control Panel |
Electrical control panel as per IP 54 with necessary controls and safety and logic interlocks
Can change between Paint booth mode & Oven mode
|
Total connected electrical Power |
24.5 KW |
Utility Details
| Electric System |
415 V /50 Hz/3 Phase/4 Wires
If different please contact us.
|
| Liquefied Petroleum Gas Train Output Pressure |
PBWH main line pressure 1000 mbar with regulator valve (output pressure 0-350 mbar) at a height of 1000 mm from floor level.
|
| Standards Followed |
Specifications confirming to OSHA, NFPA, EPA, Dubai EHS standards
|
Warranty
| Warranty |
12 months from the date of commissioning (if the installation is done by us) or 15 months from the date of supply, whichever is earlier.
|
*Conditions apply
PBWH Dimensions
| Internal Size (L x W x H) in mm |
9880 x 5880 x 4940 |
| External Size (L x W x H) in mm |
10000 x 8000 x 8000 |
Booth Construction
| Enclosure |
60 mm thick pre coated PUF panels.
|
| Civil Pit |
Not required |
| Door |
Multi Fold entry/exit door (5500 W x 5000 H in mm) - 1 unit |
| Emergency door with safety glass window |
(800 W x 2000 H in mm)-1 unit |
Lighting
| Illumination Intensity |
1000 Lux. |
| Illumination |
18 units of fluorescent lights each 4x36 W of 1.2 m long, total 2600 W
|
Filtration
| Air Inlet Filters |
EU3 Pre filter and EU5 Matt filter
Filtration through EU3 filter to arrest dust particles up to 20 micron size and further filtration will be done using EU 5 down to 5 micron.
|
| Paint arresting Filters |
1) Pleated Cardboard Filter is made of layers of recycled Kraft paper, perforated, pleated and glued,imported from European Union.
2) Paint holding capacity up to 18 kg/m2*
3) Filtration efficiency up to 98% depending on type of paint sprayed
4) Easily replaceable pull out & fit in type
|
Ventilation System
| Fresh air supply cum exhaust fan capacity |
55000 CMH - 02 units to maintain for dust free painting and to maintain positive pressure in the paint booth.
In Paint booth mode will act as supply and exhaust fan.
In oven mode will act as circulation fan.
|
| Supply cum Exhaust Fan Motor |
Siemens/ABB make as per IEC standards
2x 15 KW |
| Air flow velocity |
Minimum average air velocity - 0.5 m/sec when measured 1 m away from the filter. |
| Exhaust Ducting |
Exhaust duct of 1 m length from our equipment. |
Heating System
| Transfer of energy |
Convection |
| Heating media |
High Speed Diesel/Liquefied Petroleum Gas |
| Ambient temperature considered |
20 deg C
If different please contact us.
|
| Maximum air temperature |
80 deg C |
| Burner Capacity |
High Speed Diesel/Liquefied Petroleum Gas fired Burner of capacity 300,000 Kcal/Hr
|
| Heat Exchanger |
Indirect heating system consisting of Heat Exchanger made out of SS.
Heat Exchanger capacity : 300,000 Kcal/Hr
Type : Floating Head Heat Exchanger capable of expanding or contracting in all directions.
|
| Air recirculation |
90% of air recirculation |
| Air recirculation blower |
55000 CMH - 02 units (Same as air supply blowers)
Temperature - Hot air temperature |
| Temperature control |
By Temperature Indicating Controller. |
| Air flow control |
Pneumatic dampers to change between paint booth & oven mode. |
Control Panel
| Control Panel |
Electrical control panel as per IP 54 with necessary controls and safety and logic interlocks
Can change between Paint booth mode & Oven mode
|
Total connected electrical Power |
34 KW |
Utility Details
| Electric System |
415 V /50 Hz/3 Phase/4 Wires
If different please contact us. |
| Liquefied Petroleum Gas Train Output Pressure |
PBWH main line pressure 1000 mbar with regulator valve (output pressure 0-350 mbar) at a height of 1000 mm from floor level.
|
| Standards Followed |
Specifications confirming to OSHA, NFPA, EPA, Dubai EHS standards
|
Warranty
| Warranty |
12 months from the date of commissioning (if the installation is done by us) or 15 days from the date of supply, whichever is earlier.
|
*Conditions apply
PBWH Dimensions
| Internal Size (L x W x H) in mm |
11880 x 4880 x 4940 |
| External Size (L x W x H) in mm |
12000 x 7000 x 8000 |
Booth Construction
| Enclosure |
60 mm thick pre coated PUF panels.
|
| Civil Pit |
Not required |
| Door |
Multi Fold entry/exit door (4500 W x 5000 H in mm) - 1 unit |
| Emergency door with safety glass window |
(800 W x 2000 H in mm)-1 unit |
Lighting
| Illumination Intensity |
1000 Lux. |
| Illumination |
18 units of fluorescent lights each 4x36 W of 1.2 m long, total 2600 W
|
Filtration
| Air Inlet Filters |
EU3 Pre filter and EU5 Matt filter
Filtration through EU3 filter to arrest dust particles up to 20 micron size and further filtration will be done using EU 5 down to 5 micron.
|
| Paint arresting Filters |
1) Pleated Cardboard Filter is made of layers of recycled Kraft paper, perforated, pleated and glued,imported from European Union.
2) Paint holding capacity up to 18 kg/m2*
3) Filtration efficiency up to 98% depending on type of paint sprayed
4) Easily replaceable pull out & fit in type
|
Ventilation System
| Fresh air supply cum exhaust fan capacity |
55000 CMH - 02 units to maintain for dust free painting and to maintain positive pressure in the paint booth.
In Paint booth mode will act as supply and exhaust fan.
In oven mode will act as circulation fan.
|
| Supply Fan Motor |
Siemens/ABB make as per IEC standards
2x 15 KW |
| Supply cum Exhaust Fan Motor |
Siemens/ABB make as per IEC standards
2x 15 KW |
| Air flow velocity |
Minimum average air velocity - 0.5 m/sec when measured 1 m away from the filter. |
| Exhaust Ducting |
Exhaust duct of 1 m length from our equipment. |
Heating System
| Transfer of energy |
Convection |
| Heating media |
High Speed Diesel/Liquefied Petroleum Gas |
| Ambient temperature considered |
20 deg C
If different please contact us.
|
| Maximum air temperature |
80 deg C |
| Burner Capacity |
High Speed Diesel/Liquefied Petroleum Gas fired Burner of capacity 300,000 Kcal/Hr
|
| Heat Exchanger |
Indirect heating system consisting of Heat Exchanger made out of SS.
Heat Exchanger capacity : 300,000 Kcal/Hr
Type : Floating Head Heat Exchanger capable of expanding or contracting in all directions.
|
| Air recirculation |
90% of air recirculation |
| Air recirculation blower |
55000 CMH - 02 units (Same as air supply blowers)
Temperature - Hot air temperature |
| Temperature control |
By Temperature Indicating Controller. |
| Air flow control |
Pneumatic dampers to change between paint booth & oven mode. |
Control Panel
| Control Panel |
Electrical control panel as per IP 54 with necessary controls and safety and logic interlocks
Can change between Paint booth mode & Oven mode
|
Total connected electrical Power |
34 KW |
Utility Details
| Electric System |
415 V /50 Hz/3 Phase/4 Wires
If different please contact us.
|
| Liquefied Petroleum Gas Train Output Pressure |
PBWH main line pressure 1000 mbar with regulator valve (output pressure 0-350 mbar) at a height of 1000 mm from floor level.
|
| Standards Followed |
Specifications confirming to OSHA, NFPA, EPA, Dubai EHS standards
|
Warranty
| Warranty |
12 months from the date of commissioning (if the installation is done by us) or 15 days from the date of supply, whichever is earlier.
|
*Conditions apply
PBWH Dimensions
| Internal Size (L x W x H) in mm |
14880 x 4880 x 4940 |
| External Size (L x W x H) in mm |
15000 x 7000 x 8000 |
Booth Construction
| Enclosure |
60 mm thick pre coated PUF panels.
|
| Civil Pit |
Not required |
| Door |
Multi Fold entry/exit door (4500 W x 5000 H in mm) - 1 unit |
| Emergency door with safety glass window |
(800 W x 2000 H in mm)-2 units |
Lighting
| Illumination Intensity |
1000 Lux. |
| Illumination |
24 units of fluorescent lights each 4x36 W of 1.2 m long, total 3500 W
|
Filtration
| Air Inlet Filters |
EU3 Pre filter and EU5 Matt filter
Filtration through EU3 filter to arrest dust particles up to 20 micron size and further filtration will be done using EU 5 down to 5 micron.
|
| Paint arresting Filters |
1) Pleated Cardboard Filter is made of layers of recycled Kraft paper, perforated, pleated and glued,imported from European Union.
2) Paint holding capacity up to 18 kg/m2*
3) Filtration efficiency up to 98% depending on type of paint sprayed
4) Easily replaceable pull out & fit in type
|
Ventilation System
| Fresh air supply cum exhaust fan capacity |
70000 CMH - 02 units to maintain for dust free painting and to maintain positive pressure in the paint booth.
In Paint booth mode will act as supply and exhaust fan.
In oven mode will act as circulation fan.
|
| Supply cum Exhaust Fan Motor |
Siemens/ABB make as per IEC standards
2 x 18.5 KW |
| Air flow velocity |
Minimum average air velocity - 0.5 m/sec when measured 1 m away from the filter. |
| Exhaust Ducting |
Exhaust duct of 1 m length from our equipment. |
Heating System
| Transfer of energy |
Convection |
| Heating media |
High Speed Diesel/Liquefied Petroleum Gas |
| Ambient temperature considered |
20 deg C
If different please contact us.
|
| Maximum air temperature |
80 deg C |
| Burner Capacity |
High Speed Diesel/Liquefied Petroleum Gas fired Burner of capacity 300,000 Kcal/Hr
|
| Heat Exchanger |
Indirect heating system consisting of Heat Exchanger made out of SS.
Heat Exchanger capacity : 300,000 Kcal/Hr
Type : Floating Head Heat Exchanger capable of expanding or contracting in all directions.
|
| Air recirculation |
90% of air recirculation |
| Air recirculation blower |
70000 CMH - 02 units (Same as air supply blowers)
Temperature - Hot air temperature |
| Temperature control |
By Temperature Indicating Controller. |
| Air flow control |
Pneumatic dampers to change between paint booth & oven mode. |
Control Panel
| Control Panel |
Electrical control panel as per IP 54 with necessary controls and safety and logic interlocks
Can change between Paint booth mode & Oven mode
|
Total connected electrical Power |
41.5 KW |
Utility Details
| Electric System |
415 V /50 Hz/3 Phase/4 Wires
If different please contact us. |
| Liquefied Petroleum Gas Train Output Pressure |
PBWH main line pressure 1000 mbar with regulator valve (output pressure 0-350 mbar) at a height of 1000 mm from floor level.
|
| Standards Followed |
Specifications confirming to OSHA, NFPA, EPA, Dubai EHS standards
|
Warranty
| Warranty |
12 months from the date of commissioning (if the installation is done by us) or 15 days from the date of supply, whichever is earlier.
|
*Conditions apply
PBWH Dimensions
| Internal Size (L x W x H) in mm |
16880 x 4880 x 4940 |
| External Size (L x W x H) in mm |
17000 x 7000 x 8000 |
Booth Construction
| Enclosure |
60 mm thick pre coated PUF panels.
|
| Civil Pit |
Not required |
| Door |
Multi Fold entry/exit door (4500 W x 5000 H in mm) - 1 unit |
| Emergency door with safety glass window |
(800 W x 2000 H in mm)-2 units |
Lighting
| Illumination Intensity |
1000 Lux. |
| Illumination |
26 units of fluorescent lights each 4x36 W of 1.2 m long, total 3750 W
|
Filtration
| Air Inlet Filters |
EU3 Pre filter and EU5 Matt filter
Filtration through EU3 filter to arrest dust particles up to 20 micron size and further filtration will be done using EU 5 down to 5 micron.
|
| Paint arresting Filters |
1) Pleated Cardboard Filter is made of layers of recycled Kraft paper, perforated, pleated and glued,imported from European Union.
2) Paint holding capacity up to 18 kg/m2*
3) Filtration efficiency up to 98% depending on type of paint sprayed
4) Easily replaceable pull out & fit in type
|
Ventilation System
| Fresh air supply cum exhaust fan capacity |
79000 CMH - 02 units to maintain for dust free painting and to maintain positive pressure in the paint booth.
In Paint booth mode will act as supply and exhaust fan.
In oven mode will act as circulation fan.
|
| Supply cum Exhaust Fan Motor |
Siemens/ABB make as per IEC standards
2 x 22 KW |
| Air flow velocity |
Minimum average air velocity - 0.5 m/sec when measured 1 m away from the filter. |
| Exhaust Ducting |
Exhaust duct of 1 m length from our equipment. |
Heating System
| Transfer of energy |
Convection |
| Heating media |
High Speed Diesel/Liquefied Petroleum Gas |
| Ambient temperature considered |
20 deg C
If different please contact us. |
| Maximum air temperature |
80 deg C |
| Burner Capacity |
High Speed Diesel/Liquefied Petroleum Gas fired Burner of capacity 400,000 Kcal/Hr
|
| Heat Exchanger |
Indirect heating system consisting of Heat Exchanger made out of SS.
Heat Exchanger capacity : 400,000 Kcal/Hr
Type : Floating Head Heat Exchanger capable of expanding or contracting in all directions.
|
| Air recirculation |
90% of air recirculation |
| Air recirculation blower |
79000 CMH - 02 units (Same as air supply blowers)
Temperature - Hot air temperature
|
| Temperature control |
By Temperature Indicating Controller. |
| Air flow control |
Pneumatic dampers to change between paint booth & oven mode. |
Control Panel
| Control Panel |
Electrical control panel as per IP 54 with necessary controls and safety and logic interlocks
Can change between Paint booth mode & Oven mode
|
Total connected electrical Power |
48.8 KW |
Utility Details
| Electric System |
415 V /50 Hz/3 Phase/4 Wires
If different please contact us. |
| Liquefied Petroleum Gas Train Output Pressure |
PBWH main line pressure 1000 mbar with regulator valve (output pressure 0-350 mbar) at a height of 1000 mm from floor level.
|
| Standards Followed |
Specifications confirming to OSHA, NFPA, EPA, Dubai EHS standards
|
Warranty
| Warranty |
12 months from the date of commissioning (if the installation is done by us) or 15 days from the date of supply, whichever is earlier.
|
*Conditions apply
PBWH Dimensions
| Internal Size (L x W x H) in mm |
20880 x 5880 x 4940 |
| External Size (L x W x H) in mm |
21000 x 8000 x 8000 |
Booth Construction
| Enclosure |
60 mm thick pre coated PUF panels.
|
| Civil Pit |
Not required |
| Door |
Multi Fold entry/exit door (5500 W x 5000 H in mm) - 1 unit |
| Emergency door with safety glass window |
(800 W x 2000 H in mm) - 2 units |
Lighting
| Illumination Intensity |
1000 Lux. |
| Illumination |
38 units of fluorescent lights each 4x36 W of 1.2 m long, total 5480 W
|
Filtration
| Air Inlet Filters |
EU3 Pre filter and EU5 Matt filter
Filtration through EU3 filter to arrest dust particles up to 20 micron size and further filtration will be done using EU 5 down to 5 micron.
|
| Paint arresting Filters |
1) Pleated Cardboard Filter is made of layers of recycled Kraft paper, perforated, pleated and glued,imported from European Union.
2) Paint holding capacity up to 18 kg/m2*
3) Filtration efficiency up to 98% depending on type of paint sprayed
4) Easily replaceable pull out & fit in type
|
Ventilation System
| Fresh air supply cum exhaust fan capacity |
78000 CMH - 03 units to maintain for dust free painting and to maintain positive pressure in the paint booth.
In Paint booth mode will act as supply and exhaust fan.
In oven mode will act as circulation fan.
|
| Supply cum Exhaust Fan Motor |
Siemens/ABB make as per IEC standards
3 x 22 KW |
| Air flow velocity |
Minimum average air velocity - 0.5 m/sec when measured 1 m away from the filter. |
| Exhaust Ducting |
Exhaust duct of 1 m length from our equipment. |
Heating System
| Transfer of energy |
Convection |
| Heating media |
High Speed Diesel/Liquefied Petroleum Gas |
| Ambient temperature considered |
20 deg C
If different please contact us.
|
| Maximum air temperature |
80 deg C |
| Burner Capacity |
High Speed Diesel/Liquefied Petroleum Gas fired Burner of capacity of 600,000 Kcal/Hr
|
| Heat Exchanger |
Indirect heating system consisting of Heat Exchanger made out of SS.
Heat Exchanger capacity : 600,000 Kcal/Hr
Type : Floating Head Heat Exchanger capable of expanding or contracting in all directions.
|
| Air recirculation |
90% of air recirculation |
| Air recirculation blower |
78000 CMH - 03 units (Same as air supply blowers)
Temperature - Hot air temperature |
| Temperature control |
By Temperature Indicating Controller. |
| Air flow control |
Pneumatic dampers to change between paint booth & oven mode. |
Control Panel
| Control Panel |
Electrical control panel as per IP 54 with necessary controls and safety and logic interlocks
Can change between Paint booth mode & Oven mode
|
Total connected electrical Power |
72.5 KW |
Utility Details
| Electric System |
415 V /50 Hz/3 Phase/4 Wires
If different please contact us
|
| Liquefied Petroleum Gas Train Output Pressure |
PBWH main line pressure 1000 mbar with regulator valve (output pressure 0-350 mbar) at a height of 1000 mm from floor level.
|
| Standards Followed |
Specifications confirming to OSHA, NFPA, EPA, Dubai EHS standards
|
Warranty
| Warranty |
12 months from the date of commissioning (if the installation is done by us) or 15 days from the date of supply, whichever is earlier.
|
*Conditions apply
PBWH Dimensions
| Internal Size (L x W x H) in mm |
5880 x 4880 x 4940 |
| External Size (L x W x H) in mm |
6000 x 7000 x 8000 |
Booth Construction
| Enclosure |
60 mm thick pre coated PUF panels.
|
| Civil Pit |
Not required |
| Door |
Multi Fold entry/exit door (4500 W x 5000 H in mm) - 1 unit |
| Emergency door with safety glass window |
(800 W x 2000 H in mm)-1 unit |
Lighting
| Illumination Intensity |
1000 Lux. |
| Illumination |
10 units of fluorescent lights each 4x36 W of 1.2 m long, total 1440 W
|
Filteration
| Air Inlet Filters |
EU3 Pre filter and EU5 Matt filter
Filtration through EU3 filter to arrest dust particles up to 20 micron size and further filtration will be done using EU 5 down to 5 micron.
|
| Paint arresting Filters |
1) Pleated Cardboard Filter is made of layers of recycled Kraft paper, perforated, pleated and glued,imported from European Union.
2) Paint holding capacity up to 18 kg/m2*
3) Filtration efficiency up to 98% depending on type of paint sprayed
4) Easily replaceable pull out & fit in type
|
Ventilation System
| Fresh air supply fan capacity |
55000 CMH - 01 unit to maintain for dust free painting and to maintain positive pressure in the paint booth.
In Paint booth mode will act as supply fan.
In oven mode will act as circulation fan.
|
| Supply Fan Motor |
Siemens/ABB make as per IEC standards 1x 15 KW |
| Exhaust air fan capacity |
27000 CMH - 02 units. Operating Medium - Air with paint fumes
|
| Exhaust Fan Motor |
Siemens/ABB make as per IEC standards 1x 15 KW |
| Air flow velocity |
Minimum average air velocity - 0.5 m/sec when measured 1 m away from the filter. |
| Exhaust Ducting |
Exhaust duct of 1 m length from our equipment. |
Heating System
| Transfer of energy |
Convection |
| Heating media |
High Speed Diesel/Liquefied Petroleum Gas |
| Ambient temperature considered |
20 deg C
If different please contact us.
|
| Maximum air temperature |
80 deg C |
| Burner Capacity |
High Speed Diesel/Liquefied Petroleum Gas fired Burner of capacity 100,000 Kcal/Hr
|
| Heat Exchanger |
Indirect heating system consisting of Heat Exchanger made out of SS.
Heat Exchanger capacity : 100,000 Kcal/Hr
Type:Floating Head Heat Exchanger capable of expanding or contracting in all directions.
|
| Air recirculation |
90% of air recirculation |
| Air recirculation blower |
55000 CMH - 01 unit (Same as air supply blower)
Temperature - Hot air temperature
|
| Temperature control |
By Temperature Indicating Controller. |
| Air flow control |
Pneumatic dampers to change between paint booth & oven mode. |
Control Panel
| Control Panel |
Electrical control panel as per IP 54 with necessary controls and safety and logic interlocks
Can change between Paint booth mode & Oven mode.
|
Total connected electrical Power |
28.5 KW
|
Utility Details
| Electric System |
415 V /50 Hz/3 Phase/4 Wires
If different please contact us.
|
| Liquefied Petroleum Gas Train Output Pressure |
PBWH main line pressure 1000 mbar with regulator valve (output pressure 0-350 mbar) at a height of 1000 mm from floor level.
|
| Standards Followed |
Specifications confirming to OSHA, NFPA, EPA, Dubai EHS standards.
|
Warranty
| Warranty |
12 months from the date of commissioning (if the installation is done by us) or 15 months from the date of supply, whichever is earlier.
|
*Conditions apply
PBWH Dimensions
| Internal Size (L x W x H) in mm |
7880 x 4880 x 4940 |
| External Size (L x W x H) in mm |
8000 x 7000 x 8000 |
Booth Construction
| Enclosure |
60 mm thick pre coated PUF panels.
|
| Civil Pit |
Not required |
| Door |
Multi Fold entry/exit door (4500 W x 5000 H in mm) - 1 unit |
| Emergency door with safety glass window |
(800 W x 2000 H in mm)-1 unit |
Lighting
| Illumination Intensity |
1000 Lux. |
| Illumination |
12 units of fluorescent lights each 4x36 W of 1.2 m long, total 1730 W
|
Filtration
| Air Inlet Filters |
EU3 Pre filter and EU5 Matt filter
Filtration through EU3 filter to arrest dust particles up to 20 micron size and further filtration will be done using EU 5 down to 5 micron.
|
| Paint arresting Filters |
1) Pleated Cardboard Filter is made of layers of recycled Kraft paper, perforated, pleated and glued,imported from European Union.
2) Paint holding capacity up to 18 kg/m2*
3) Filtration efficiency up to 98% depending on type of paint sprayed
4) Easily replaceable pull out & fit in type
|
Ventilation System
| Fresh air supply fan capacity |
37000 CMH - 02 units to maintain for dust free painting and to maintain positive pressure in the paint booth.
In Paint booth mode will act as supply fan.
In oven mode will act as circulation fan.
|
| Supply Fan Motor |
Siemens/ABB make as per IEC standards
2x 11 KW |
| Exhaust air fan capacity |
36000 CMH - 02 units
Operating Medium - Air with paint fumes
|
| Exhaust Fan Motor |
Siemens/ABB make as per IEC standards
2 x 7.5 KW |
| Air flow velocity |
Minimum average air velocity - 0.5 m/sec when measured 1 m away from the filter. |
| Exhaust Ducting |
Exhaust duct of 1 m length from our equipment |
Heating System
| Transfer of energy |
Convection |
| Heating media |
High Speed Diesel/Liquefied Petroleum Gas |
| Ambient temperature considered |
20 deg C
If different please contact us.
|
| Maximum air temperature |
80 deg C |
| Burner Capacity |
High Speed Diesel/Liquefied Petroleum Gas fired Burner of capacity 200,000 Kcal/Hr
|
| Heat Exchanger |
Indirect heating system consisting of Heat Exchanger made out of SS.
Heat Exchanger capacity : 200,000 Kcal/Hr
Type : Floating Head Heat Exchanger capable of expanding or contracting in all directions.
|
| Air recirculation |
90% of air recirculation |
| Air recirculation blower |
37000 CMH - 02 units (Same as air supply blower)
Temperature - Hot air temperature
|
| Temperature control |
By Temperature Indicating Controller. |
| Air flow control |
Pneumatic dampers to change between paint booth & oven mode. |
Control Panel
| Control Panel |
Electrical control panel as per IP 54 with necessary controls and safety and logic interlocks
Can change between Paint booth mode & Oven mode
|
Total connected electrical Power |
40 KW
|
Utility Details
| Electric System |
415 V /50 Hz/3 Phase/4 Wires
If different please contact us.
|
| Liquefied Petroleum Gas Train Output Pressure |
PBWH main line pressure 1000 mbar with regulator valve (output pressure 0-350 mbar) at a height of 1000 mm from floor level.
|
| Standards Followed |
Specifications confirming to OSHA, NFPA, EPA, Dubai EHS standards
|
Warranty
| Warranty |
12 months from the date of commissioning (if the installation is done by us) or 15 months from the date of supply, whichever is earlier.
|
*Conditions apply
PBWH Dimensions
| Internal Size (L x W x H) in mm |
9880 x 5880 x 4940 |
| External Size (L x W x H) in mm |
10000 x 8000 x 8000 |
Booth Construction
| Enclosure |
60 mm thick pre coated PUF panels.
|
| Civil Pit |
Not required |
| Door |
Multi Fold entry/exit door (5500 W x 5000 H in mm) - 1 unit |
| Emergency door with safety glass window |
(800 W x 2000 H in mm)-1 unit |
Lighting
| Illumination Intensity |
1000 Lux. |
| Illumination |
18 units of fluorescent lights each 4x36 W of 1.2 m long, total 2600 W
|
Filtration
| Air Inlet Filters |
EU3 Pre filter and EU5 Matt filter
Filtration through EU3 filter to arrest dust particles up to 20 micron size and further filtration will be done using EU 5 down to 5 micron.
|
| Paint arresting Filters |
1) Pleated Cardboard Filter is made of layers of recycled Kraft paper, perforated, pleated and glued,imported from European Union.
2) Paint holding capacity up to 18 kg/m2*
3) Filtration efficiency up to 98% depending on type of paint sprayed
4) Easily replaceable pull out & fit in type
|
Ventilation System
| Fresh air supply fan capacity |
55000 CMH - 02 units to maintain for dust free painting and to maintain positive pressure in the paint booth.
In Paint booth mode will act as supply fan.
In oven mode will act as circulation fan.
|
| Supply Fan Motor |
Siemens/ABB make as per IEC standards
2x 15 KW |
| Exhaust air fan capacity |
27000 CMH - 04 units
Operating Medium - Air with paint fumes
|
| Exhaust Fan Motor |
Siemens/ABB make as per IEC standards
4 x 5.5 KW |
| Air flow velocity |
Minimum average air velocity - 0.5 m/sec when measured 1 m away from the filter. |
| Exhaust Ducting |
Exhaust duct of 1 m length from our equipment. |
Heating System
| Transfer of energy |
Convection |
| Heating media |
High Speed Diesel/Liquefied Petroleum Gas |
| Ambient temperature considered |
20 deg C
If different please contact us.
|
| Maximum air temperature |
80 deg C |
| Burner Capacity |
High Speed Diesel/Liquefied Petroleum Gas fired Burner of capacity 300,000 Kcal/Hr
|
| Heat Exchanger |
Indirect heating system consisting of Heat Exchanger made out of SS.
Heat Exchanger capacity : 300,000 Kcal/Hr
Type : Floating Head Heat Exchanger capable of expanding or contracting in all directions.
|
| Air recirculation |
90% of air recirculation |
| Air recirculation blower |
55000 CMH - 02 units (Same as air supply blowers)
Temperature - Hot air temperature |
| Temperature control |
By Temperature Indicating Controller. |
| Air flow control |
Pneumatic dampers to change between paint booth & oven mode. |
Control Panel
| Control Panel |
Electrical control panel as per IP 54 with necessary controls and safety and logic interlocks
Can change between Paint booth mode & Oven mode
|
Total connected electrical Power |
55.5 KW |
Utility Details
| Electric System |
415 V /50 Hz/3 Phase/4 Wires
If different please contact us.
|
| Liquefied Petroleum Gas Train Output Pressure |
PBWH main line pressure 1000 mbar with regulator valve (output pressure 0-350 mbar) at a height of 1000 mm from floor level.
|
| Standards Followed |
Specifications confirming to OSHA, NFPA, EPA, Dubai EHS standards
|
Warranty
| Warranty |
12 months from the date of commissioning (if the installation is done by us) or 15 months from the date of supply, whichever is earlier.
|
*Conditions apply
PBWH Dimensions
| Internal Size (L x W x H) in mm |
11880 x 4880 x 4940 |
| External Size (L x W x H) in mm |
12000 x 7000 x 8000 |
Booth Construction
| Enclosure |
60 mm thick pre coated PUF panels.
|
| Civil Pit |
Not required |
| Door |
Multi Fold entry/exit door (4500 W x 5000 H in mm) - 1 unit |
| Emergency door with safety glass window |
(800 W x 2000 H in mm)-1 unit |
Lighting
| Illumination Intensity |
1000 Lux. |
| Illumination |
18 units of fluorescent lights each 4x36 W of 1.2 m long, total 2600 W
|
Filtration
| Air Inlet Filters |
EU3 Pre filter and EU5 Matt filter
Filtration through EU3 filter to arrest dust particles up to 20 micron size and further filtration will be done using EU 5 down to 5 micron.
|
| Paint arresting Filters |
1) Pleated Cardboard Filter is made of layers of recycled Kraft paper, perforated, pleated and glued,imported from European Union.
2) Paint holding capacity up to 18 kg/m2*
3) Filtration efficiency up to 98% depending on type of paint sprayed
4) Easily replaceable pull out & fit in type
|
Ventilation System
| Fresh air supply fan capacity |
55000 CMH - 02 units to maintain for dust free painting and to maintain positive pressure in the paint booth.
In Paint booth mode will act as supply fan.
In oven mode will act as circulation fan.
|
| Supply Fan Motor |
Siemens/ABB make as per IEC standards
2x 15 KW |
| Exhaust air fan capacity |
27000 CMH - 04 units
Operating Medium - Air with paint fumes
|
| Exhaust Fan Motor |
Siemens/ABB make as per IEC standards
4 x 5.5 KW |
| Air flow velocity |
Minimum average air velocity - 0.5 m/sec when measured 1 m away from the filter. |
| Exhaust Ducting |
Exhaust duct of 1 m length from our equipment. |
Heating System
| Transfer of energy |
Convection |
| Heating media |
High Speed Diesel/Liquefied Petroleum Gas |
| Ambient temperature considered |
20 deg C
If different please contact us.
|
| Maximum air temperature |
80 deg C |
| Burner Capacity |
High Speed Diesel/Liquefied Petroleum Gas fired Burner of capacity 300,000 Kcal/Hr
|
| Heat Exchanger |
Indirect heating system consisting of Heat Exchanger made out of SS.
Heat Exchanger capacity : 300,000 Kcal/Hr
Type : Floating Head Heat Exchanger capable of expanding or contracting in all directions.
|
| Air recirculation |
90% of air recirculation |
| Air recirculation blower |
55000 CMH - 02 units (Same as air supply blowers)
Temperature - Hot air temperature |
| Temperature control |
By Temperature Indicating Controller. |
| Air flow control |
Pneumatic dampers to change between paint booth & oven mode. |
Control Panel
| Control Panel |
Electrical control panel as per IP 54 with necessary controls and safety and logic interlocks
Can change between Paint booth mode & Oven mode
|
Total connected electrical Power |
55.5 KW |
Utility Details
| Electric System |
415 V /50 Hz/3 Phase/4 Wires
If different please contact us.
|
| Liquefied Petroleum Gas Train Output Pressure |
PBWH main line pressure 1000 mbar with regulator valve (output pressure 0-350 mbar) at a height of 1000 mm from floor level.
|
| Standards Followed |
Specifications confirming to OSHA, NFPA, EPA, Dubai EHS standards
|
Warranty
| Warranty |
12 months from the date of commissioning (if the installation is done by us) or 15 months from the date of supply, whichever is earlier.
|
*Conditions apply
PBWH Dimensions
| Internal Size (L x W x H) in mm |
14880 x 4880 x 4940 |
| External Size (L x W x H) in mm |
15000 x 7000 x 8000 |
Booth Construction
| Enclosure |
60 mm thick pre coated PUF panels.
|
| Civil Pit |
Not required |
| Door |
Multi Fold entry/exit door (4500 W x 5000 H in mm) - 1 unit |
| Emergency door with safety glass window |
(800 W x 2000 H in mm)-2 units |
Lighting
| Illumination Intensity |
1000 Lux. |
| Illumination |
24 units of fluorescent lights each 4x36 W of 1.2 m long, total 3500 W
|
Filtration
| Air Inlet Filters |
EU3 Pre filter and EU5 Matt filter
Filtration through EU3 filter to arrest dust particles up to 20 micron size and further filtration will be done using EU 5 down to 5 micron.
|
| Paint arresting Filters |
1) Pleated Cardboard Filter is made of layers of recycled Kraft paper, perforated, pleated and glued,imported from European Union.
2) Paint holding capacity up to 18 kg/m2*
3) Filtration efficiency up to 98% depending on type of paint sprayed
4) Easily replaceable pull out & fit in type
|
Ventilation System
| Fresh air supply fan capacity |
70000 CMH - 02 units to maintain for dust free painting and to maintain positive pressure in the paint booth.
In Paint booth mode will act as supply fan.
In oven mode will act as circulation fan.
|
| Supply Fan Motor |
Siemens/ABB make as per IEC standards
2x 18.5 KW |
| Exhaust air fan capacity |
34000 CMH - 04 units.
Operating Medium - Air with paint fumes
|
| Exhaust Fan Motor |
Siemens/ABB make as per IEC standards
4 x 7.5 KW |
| Air flow velocity |
Minimum average air velocity - 0.5 m/sec when measured 1 m away from the filter. |
| Exhaust Ducting |
Exhaust duct of 1 m length from our equipment. |
Heating System
| Transfer of energy |
Convection |
| Heating media |
High Speed Diesel/Liquefied Petroleum Gas |
| Ambient temperature considered |
20 deg C
If different please contact us.
|
| Maximum air temperature |
80 deg C |
| Burner Capacity |
High Speed Diesel/Liquefied Petroleum Gas fired Burner of capacity 300,000 Kcal/Hr
|
| Heat Exchanger |
Indirect heating system consisting of Heat Exchanger made out of SS.
Heat Exchanger capacity : 300,000 Kcal/Hr
Type : Floating Head Heat Exchanger capable of expanding or contracting in all directions.
|
| Air recirculation |
90% of air recirculation |
| Air recirculation blower |
70000 CMH - 02 units (Same as air supply blowers)
Temperature - Hot air temperature |
| Temperature control |
By Temperature Indicating Controller. |
| Air flow control |
Pneumatic dampers to change between paint booth & oven mode. |
Control Panel
| Control Panel |
Electrical control panel as per IP 54 with necessary controls and safety and logic interlocks
Can change between Paint booth mode & Oven mode
|
Total connected electrical Power |
71.5 KW |
Utility Details
| Electric System |
415 V /50 Hz/3 Phase/4 Wires
If different please contact us.
|
| Liquefied Petroleum Gas Train Output Pressure |
PBWH main line pressure 1000 mbar with regulator valve (output pressure 0-350 mbar) at a height of 1000 mm from floor level.
|
| Standards Followed |
Specifications confirming to OSHA, NFPA, EPA, Dubai EHS standards
|
Warranty
| Warranty |
12 months from the date of commissioning (if the installation is done by us) or 15 months from the date of supply, whichever is earlier.
|
*Conditions apply
PBWH Dimensions
| Internal Size (L x W x H) in mm |
16880 x 4880 x 4940 |
| External Size (L x W x H) in mm |
17000 x 7000 x 8000 |
Booth Construction
| Enclosure |
60 mm thick pre coated PUF panels.
|
| Civil Pit |
Not required |
| Door |
Multi Fold entry/exit door (4500 W x 5000 H in mm) - 1 unit |
| Emergency door with safety glass window |
(800 W x 2000 H in mm)-2 units |
Lighting
| Illumination Intensity |
1000 Lux. |
| Illumination |
26 units of fluorescent lights each 4x36 W of 1.2 m long, total 3750 W
|
Filtration
| Air Inlet Filters |
EU3 Pre filter and EU5 Matt filter
Filtration through EU3 filter to arrest dust particles up to 20 micron size and further filtration will be done using EU 5 down to 5 micron.
|
| Paint arresting Filters |
1) Pleated Cardboard Filter is made of layers of recycled Kraft paper, perforated, pleated and glued,imported from European Union.
2) Paint holding capacity up to 18 kg/m2*
3) Filtration efficiency up to 98% depending on type of paint sprayed
4) Easily replaceable pull out & fit in type
|
Ventilation System
| Fresh air supply fan capacity |
79000 CMH - 02 units to maintain for dust free painting and to maintain positive pressure in the paint booth.
In Paint booth mode will act as supply fan.
In oven mode will act as circulation fan.
|
| Supply Fan Motor |
Siemens/ABB make as per IEC standards
2 x 22 KW |
| Exhaust air fan capacity |
38500 CMH - 04 units
Operating Medium - Air with paint fumes
|
| Exhaust Fan Motor |
Siemens/ABB make as per IEC standards
4 x 7.5 KW |
| Air flow velocity |
Minimum average air velocity - 0.5 m/sec when measured vertically above the grating floor area. |
| Exhaust Ducting |
Exhaust duct of 1 m length from our equipment. |
Heating System
| Transfer of energy |
Convection |
| Heating media |
High Speed Diesel/Liquefied Petroleum Gas |
| Ambient temperature considered |
20 deg C
If different please contact us.
|
| Maximum air temperature |
80 deg C |
| Burner Capacity |
High Speed Diesel/Liquefied Petroleum Gas fired Burner of capacity 400,000 Kcal/Hr
|
| Heat Exchanger |
Indirect heating system consisting of Heat Exchanger made out of SS.
Heat Exchanger capacity : 400,000 Kcal/Hr
Type : Floating Head Heat Exchanger capable of expanding or contracting in all directions.
|
| Air recirculation |
90% of air recirculation |
| Air recirculation blower |
79000 CMH - 02 units (Same as air supply blowers)
Temperature - Hot air temperature
|
| Temperature control |
By Temperature Indicating Controller. |
| Air flow control |
Pneumatic dampers to change between paint booth & oven mode. |
Control Panel
| Control Panel |
Electrical control panel as per IP 54 with necessary controls and safety and logic interlocks
Can change between Paint booth mode & Oven mode
|
Total connected electrical Power |
64 KW |
Utility Details
| Electric System |
415 V /50 Hz/3 Phase/4 Wires
If different please contact us.
|
| Liquefied Petroleum Gas Train Output Pressure |
PBWH main line pressure 1000 mbar with regulator valve (output pressure 0-350 mbar) at a height of 1000 mm from floor level.
|
| Standards Followed |
Specifications confirming to OSHA, NFPA, EPA, Dubai EHS standards
|
Warranty
| Warranty |
12 months from the date of commissioning (if the installation is done by us) or 15 months from the date of supply, whichever is earlier.
|
*Conditions apply
PBWH Dimensions
| Internal Size (L x W x H) in mm |
20880 x 5880 x 4940 |
| External Size (L x W x H) in mm |
21000 x 8000 x 8000 |
Booth Construction
| Enclosure |
60 mm thick pre coated PUF panels.
|
| Civil Pit |
Not required |
| Door |
Multi Fold entry/exit door (5500 W x 5000 H in mm) - 1 unit |
| Emergency door with safety glass window |
(800 W x 2000 H in mm) - 2 units |
Lighting
| Illumination Intensity |
1000 Lux. |
| Illumination |
38 units of fluorescent lights each 4x36 W of 1.2 m long, total 5480 W
|
Filtration
| Air Inlet Filters |
EU3 Pre filter and EU5 Matt filter
Filtration through EU3 filter to arrest dust particles up to 20 micron size and further filtration will be done using EU 5 down to 5 micron.
|
| Paint arresting Filters |
1) Pleated Cardboard Filter is made of layers of recycled Kraft paper, perforated, pleated and glued,imported from European Union.
2) Paint holding capacity up to 18 kg/m2*
3) Filtration efficiency up to 98% depending on type of paint sprayed
4) Easily replaceable pull out & fit in type
|
Ventilation System
| Fresh air supply fan capacity |
78000 CMH - 03 units to maintain for dust free painting and to maintain positive pressure in the paint booth.
In Paint booth mode will act as supply fan.
In oven mode will act as circulation fan.
|
| Supply Fan Motor |
Siemens/ABB make as per IEC standards
3 x 22 KW |
| Exhaust air fan capacity |
38000 CMH - 06 units
Operating Medium - Air with paint fumes
|
| Exhaust Fan Motor |
Siemens/ABB make as per IEC standards
6 x 7.5 KW |
| Air flow velocity |
Minimum average air velocity - 0.5 m/sec when measured 1 m away from the filter. |
| Exhaust Ducting |
Exhaust duct of 1 m length from our equipment. |
Heating System
| Transfer of energy |
Convection |
| Heating media |
High Speed Diesel/Liquefied Petroleum Gas |
| Ambient temperature considered |
20 deg C
If different please contact us.
|
| Maximum air temperature |
80 deg C |
| Burner Capacity |
High Speed Diesel/Liquefied Petroleum Gas fired Burner of capacity of 600,000 Kcal/Hr
|
| Heat Exchanger |
Indirect heating system consisting of Heat Exchanger made out of SS.
Heat Exchanger capacity : 600,000 Kcal/Hr
Type : Floating Head Heat Exchanger capable of expanding or contracting in all directions.
|
| Air recirculation |
90% of air recirculation |
| Air recirculation blower |
78000 CMH - 03 units (Same as air supply blowers)
Temperature - Hot air temperature |
| Temperature control |
By Temperature Indicating Controller. |
| Air flow control |
Pneumatic dampers to change between paint booth & oven mode. |
Control Panel
| Control Panel |
Electrical control panel as per IP 54 with necessary controls and safety and logic interlocks
Can change between Paint booth mode & Oven mode
|
Total connected electrical Power |
117.5 KW |
Utility Details
| Electric System |
415 V /50 Hz/3 Phase/4 Wires
If different please contact us
|
| Liquefied Petroleum Gas Train Output Pressure |
PBWH main line pressure 1000 mbar with regulator valve (output pressure 0-350 mbar) at a height of 1000 mm from floor level.
|
| Standards Followed |
Specifications confirming to OSHA, NFPA, EPA, Dubai EHS standards
|
Warranty
| Warranty |
12 months from the date of commissioning (if the installation is done by us) or 15 months from the date of supply, whichever is earlier.
|
*Conditions apply
PBWH Dimensions
| Internal Size (L x W x H) in m |
6.9 x 3.9 x 2.7 |
| External Size (L x W x H) in m |
7 x 5.3 x 3.7 |
50 mm thick pre coated puff panels
Drive in Ramps-1 unit of 3 m width
Three leaved main door of size 3 (W) x 2.7 (H) in m
Emergency Door of size 0.8 (W) x 2 (H) in m
8 Nos of fluorescent lights each 4x36 W of 1.2 m long
22,500 m3/hr - 7.5 KW Fan Capacity
1,60,000 Kcal/hr Diesel or gas fired burner capacity
95 % of air re-circulation
Ambient- min 20 deg C
Air Temperature -max 80 deg C
EU5 Matt filter in air inlet
Exhaust Duct of 13 m Height from FFL
Electrical control panel with necessary controls and interlocks
Installation & Freight are excluded from our scope.
 /p>
-
-
|
